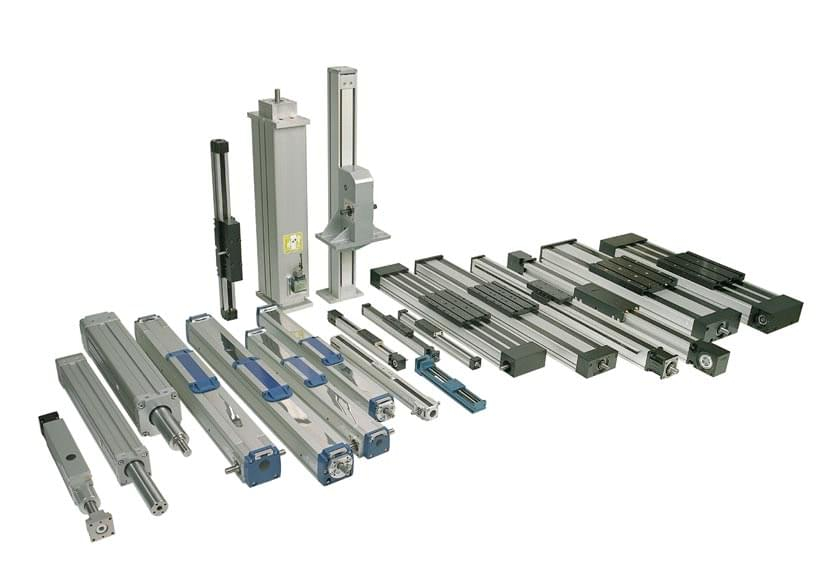

Liniar units

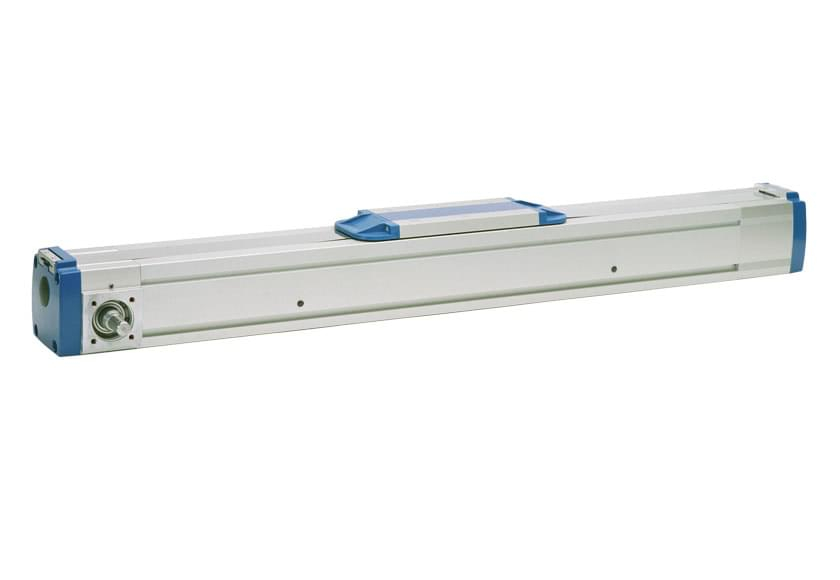

The toothed belt drive
- length: 12000 mm
- maximum linear speed: 10 m / s
- accuracy: 0.05 mm

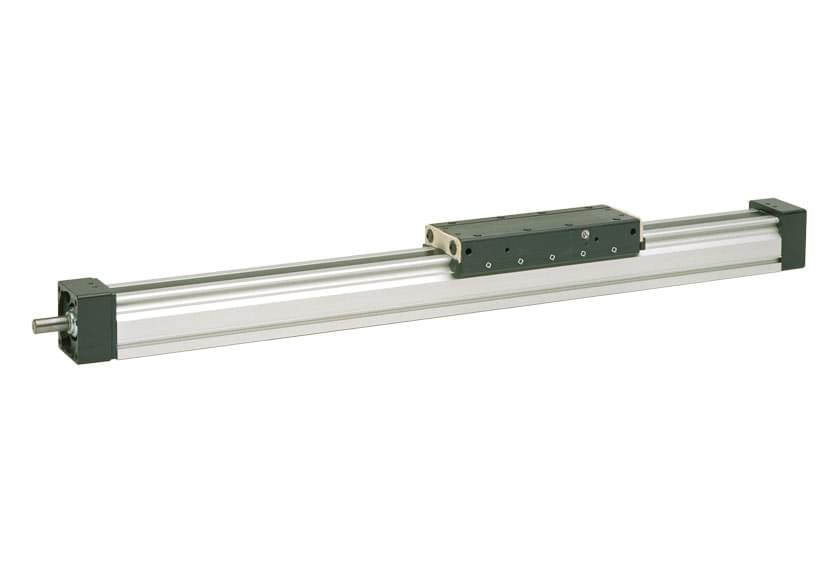

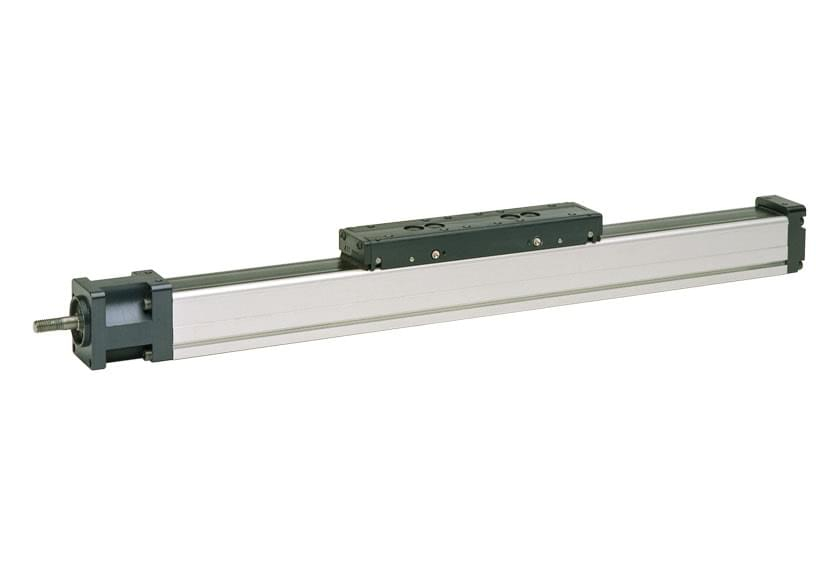

The ball screw drive
- length: 11000 mm
- linear speed: 2.5 m / s
- accuracy: 0.005 mm
- force: 300 to 40,000 N
- acceleration: up to 40 m/s2
- profile size: from 25 - up to 285 mm
Standard Linear Motion Systems

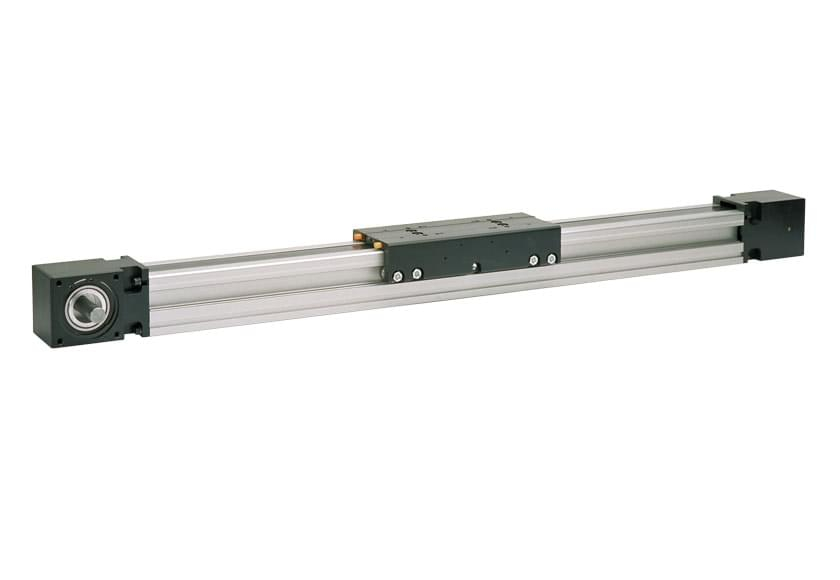

Movoparts Linear Units Economical linear units designed for transport grade applications such as packaging, material handling, and factory automation. | WH (SpeedLine) Linear Units Wheel-guided linear units designed for high-speed material handling and packaging applications where throughput is critical. | WM (PowerLine) Linear Units Ball-guided linear units that combine high precision with stiffness and rigidity for applications such as machine tool automation and test/measurement. |
Linear Tables Linear units with dual rail, 4 bearing architecture designed for maximum moment load and/or precision. | MovoTrak Collaborative 7th Axis The first ever collaborative range extender for cobots, featuring collision detection settings for groundbreaking programming and control benefits. | Miniature Linear Units Small-scale linear units that are optimal for medical, lab automation, and lightweight packaging or material handling applications. |
